Indexable inserts for turning WNMG,

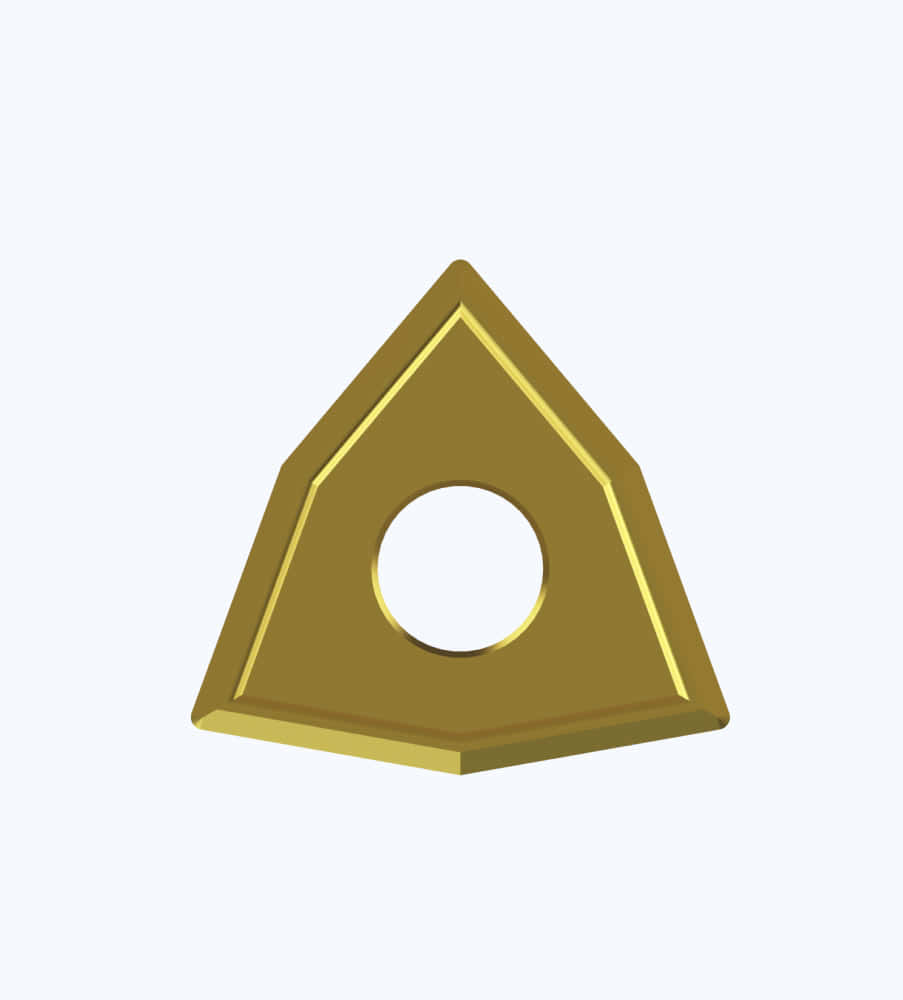

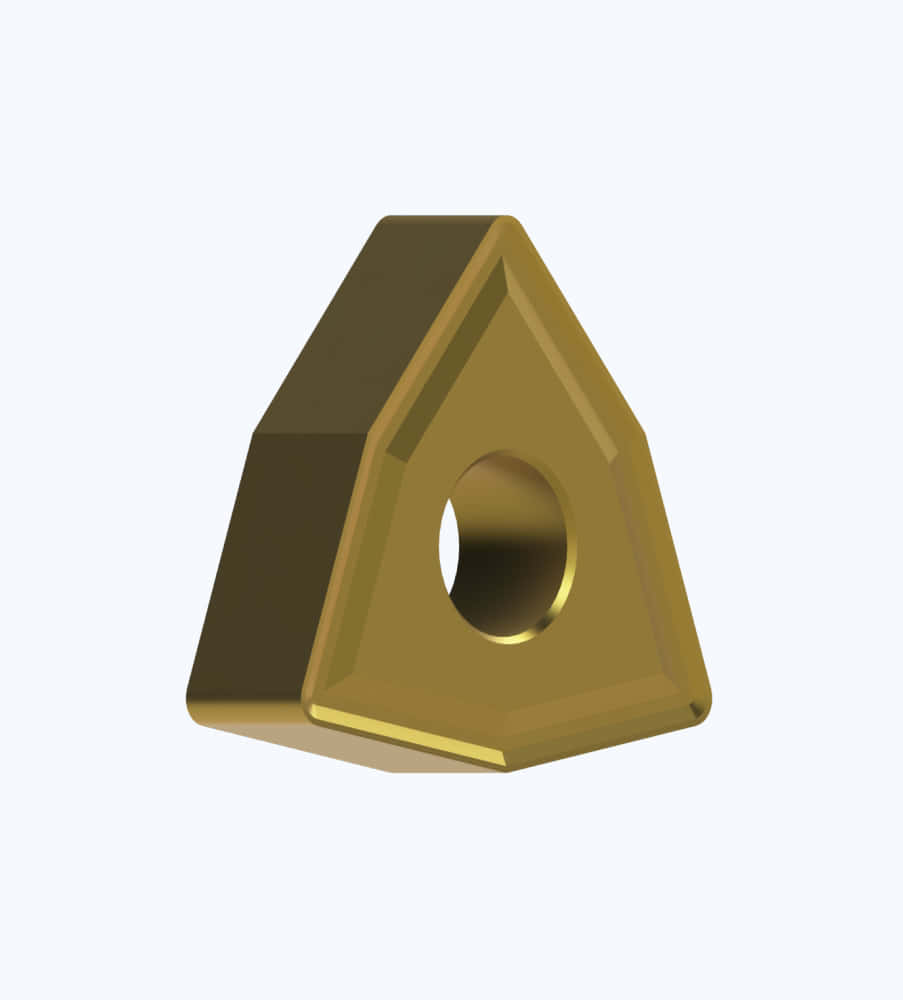

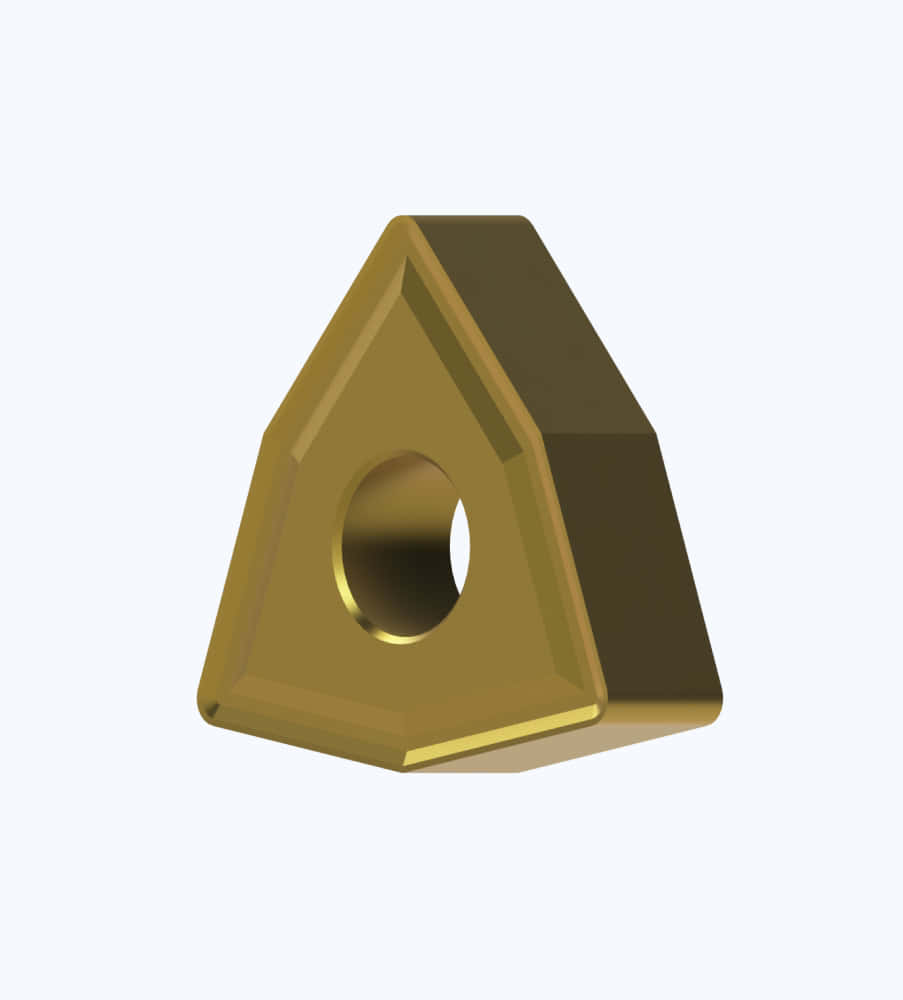

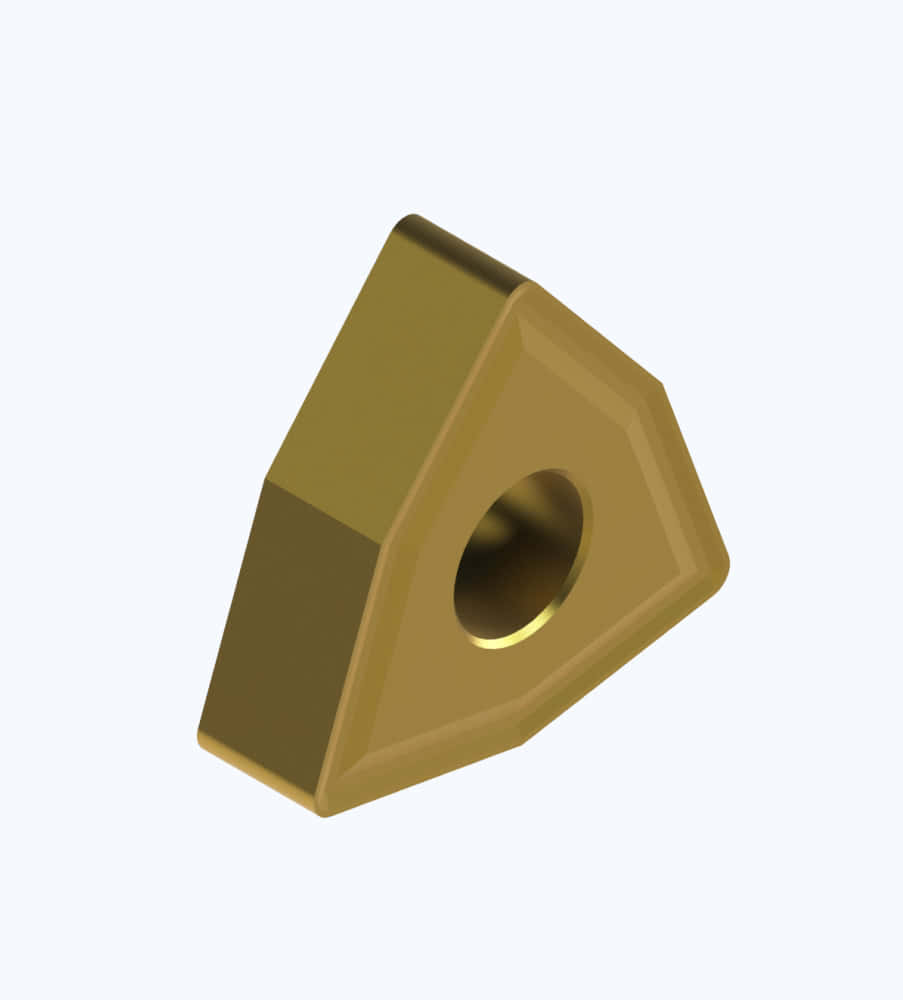

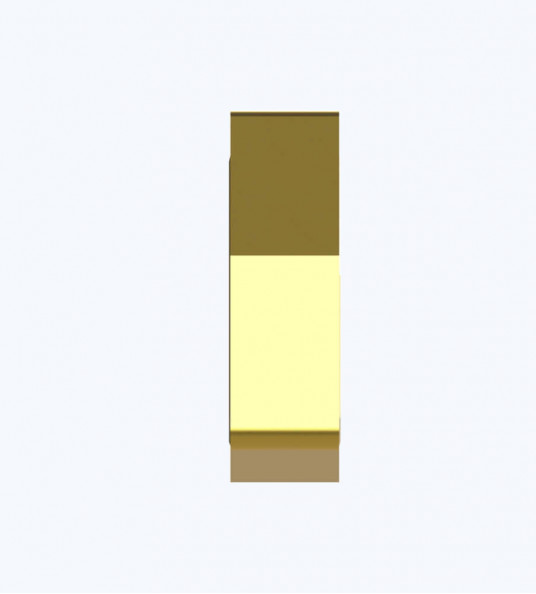

80 degree hexagonal insert with hole and chip breaking grooves on both sides, for roughing materials.
80 degree hexagonal insert with hole and chip breaking grooves on both sides, for roughing materials.

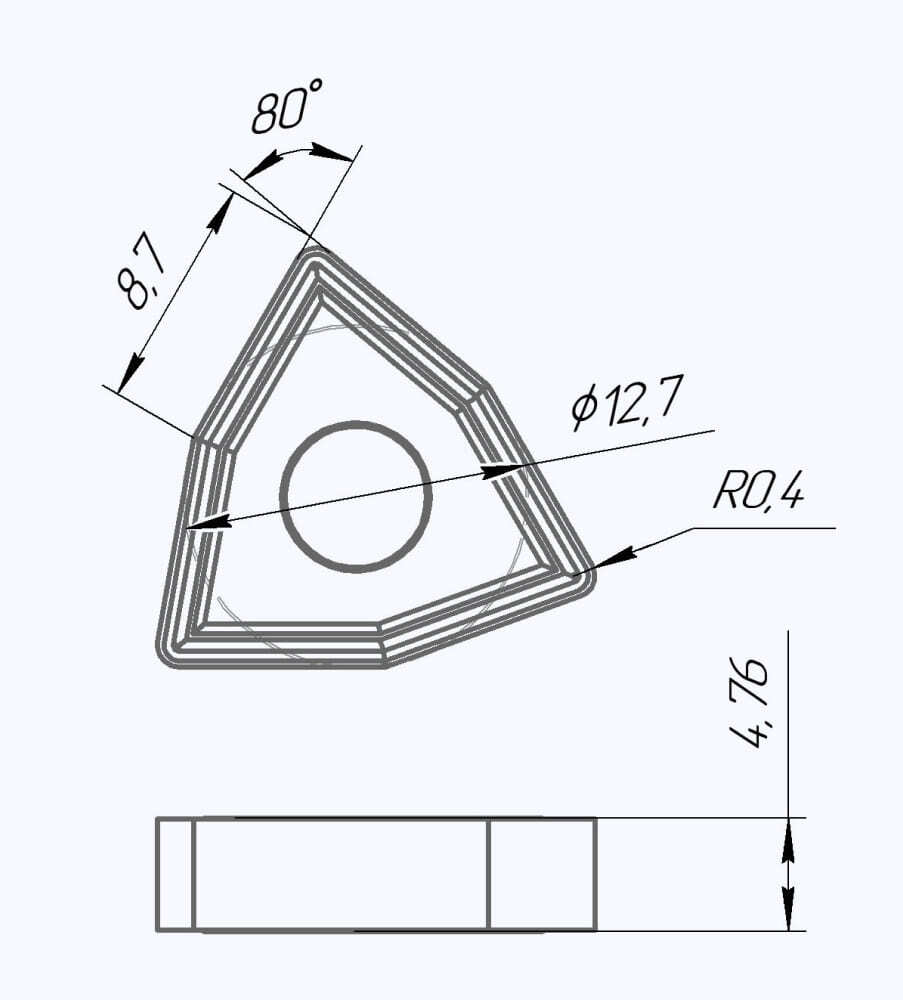

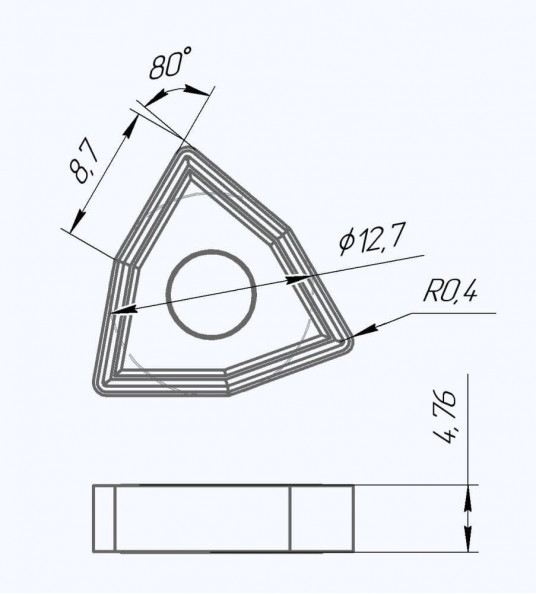

| Designation | L, mm | s, mm | r, mm | d, mm | d1.mm |
| WNMG-080404 | 8.7 | 4.76 | 0.4 | 12.7 | 5.16 |
| WNMG-080408 | 8.7 | 4.76 | 0.8 | 12.7 | 5.16 |
| WNMG-080412 | 8.7 | 4.76 | 1.2 | 12.7 | 5.16 |
| WNMG-130612 | 13.03 | 6.35 | 1.2 | 19.05 | 7.94 |
