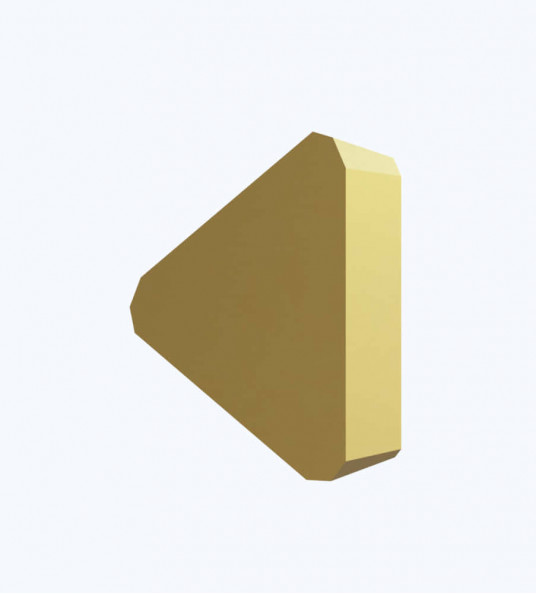

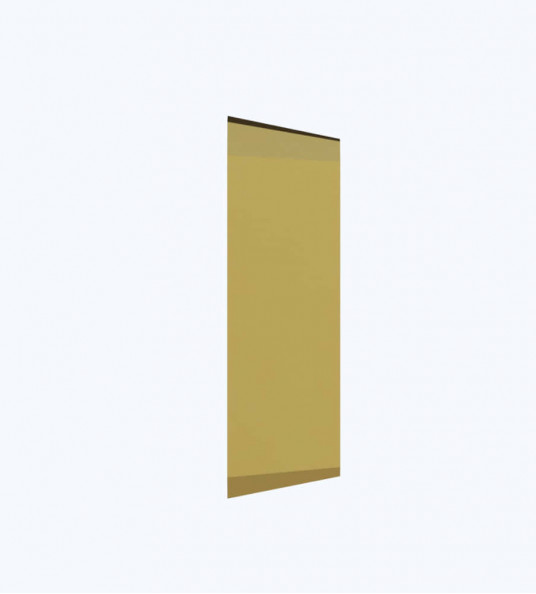

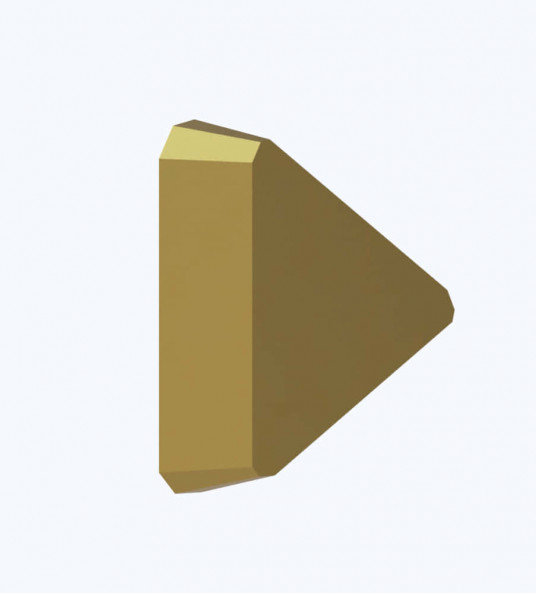

Carbide milling insert 60° triangular, 1/2" inscribed circle, 3/16" thick, 0.47" corner radius
Provides longer tool life than uncoated grades. Used for turning and milling carbon and alloy steels, tool steel and stainless steel.
The coating allows the cutting edge of the insert to pass cleanly through the material without causing the material to stick. The coating also helps reduce cutting temperatures and increase tool life.
Used for face and face milling of a wide range of materials.

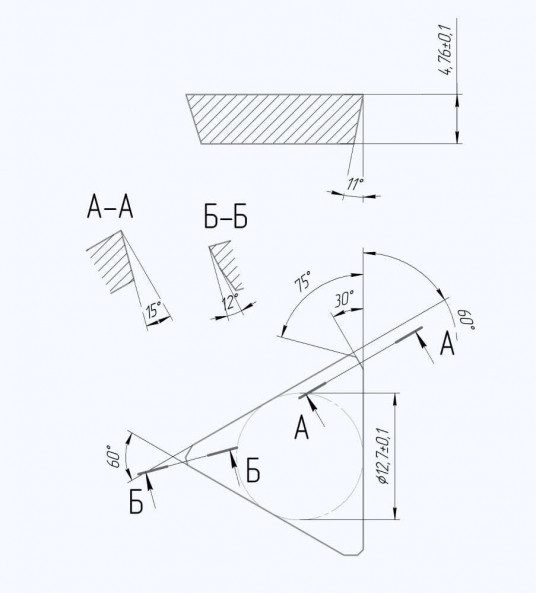

| name | L | d | s | m | b |
| TPKN-2204PDL | 22.0 | 4.76 | 12.700 | 3.55 | 1.4 |
